Pre-Alpha Airship Blog Series 4 - Shipyard - an Evolution of the Front Door

By Alan Meadows and Rodolfo Pacheco on 10/09/2019

UPDATE 03-August-2020: Airship 2.0 development spans multiple milestones. Upon completing the first major milestone, Alpha, the community took some time to reflect on lessons learned and how they impacted the direction and design of Airship 2.0. We have summarized these lessons learned and how the design has changed over time - including using different technologies and approaches. You can read more about these changes here: Airship 2.0 is Alpha - Lessons Learned. We recommend reviewing these changes before reading blogs marked as "Pre-Alpha."

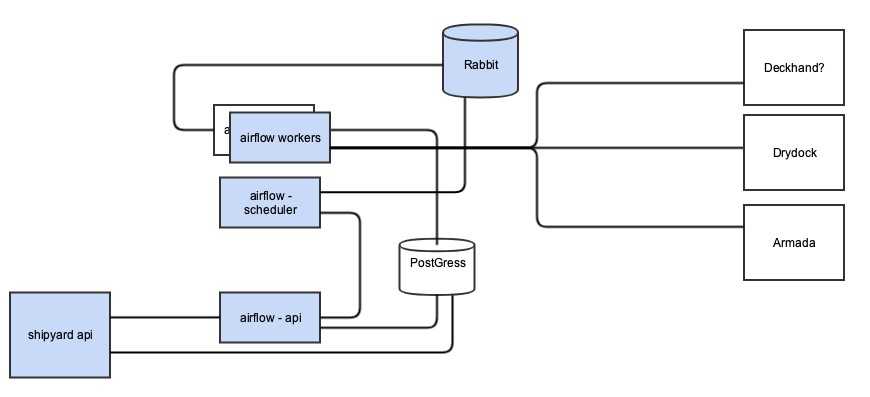

Shipyard provides a frontend API within Airship environments that allow users to push their declared documents into sites and execute pre-defined Directed Acyclic Graphs (DAGs) against those declarations. DAG is a directed graph data structure for topological ordering. From an architectural perspective, this is what Shipyard looks like today and how it interacts with other Airship components:

airship 1 shipyard

Shipyard leverages the Falcon web framework for the API component and uses Apache Airflow as the backend engine to programmatically author, schedule and monitor workflows. The backend is composed of workers and schedulers, and leverages database and message queue infrastructure in order to process DAGs. We initially chose Airflow as our workflow engine because of its wide use as a DAG workflow engine. Ultimately, the choice let us down in a few ways:

  • We did not succeed at making our workflows themselves configuration driven. The technology choice required DAGs to be predefined and baked into the Airflow worker containers as Python scripts.
  • Airflow as a DAG engine had much heavier infrastructure requirements than we anticipated in order to process workflows.
  • Using Airflow as the orchestrator to update infrastructure components that are actually supporting Airflow itself was very difficult.

Let us dive into more details on exactly what functionality Shipyard provides for us today:

  • Document Management Functionality

    • Ingest document into the site (commit etc.)
    • Document delivery
    • Document validation by interactions with Deckhand, Armada, etc.
    • Retrieve documents (rendered, specific version, labels)
  • Workflow Management

    • Support the following out of the box actions:
    • Deploy site
    • Site update
    • Software update
    • Redeploy host
    • Test site
    • Inspect workflows state
    • Follow a specific workflow and its status
    • Retrieve information about each workflow step
    • Retrieve logs from each workflow step
    • History from previous actions
    • Retrieve a previously run workflow and its status
    • Retrieve information about each workflow step
    • Retrieve logs from each workflow step
  • Retrieve Status information of the cluster

    • For specific nodes, what is the status?
    • Relying on Drydock and Promenade to get the status

Given our goals with Airship 2.0 covered in previous blog posts, evolving Shipyard had the following requirements:

  • Achieve a minimalistic presence for Shipyard
  • Define the new or equivalent entry point into Airship
  • Provide a mechanism to manage document revisions
  • Take steps towards achieving the Ephemeral Undercloud Control Plane (EUCP)

There are now several solutions for providing cloud-native workflows. After a careful analysis of the available upstream projects, we have decided that Argo is the more mature project and provides the fuller, richer feature set as well as an operations-focused outlook required for our workflow goals.

Introducing a cloud-native orchestrator also provides a mechanism to solve for more complex upgrade scenarios where there is value in declaratively defining specific upgrade steps and flows directly in your Airship documents, so you do not have to ever step outside the declarative system no matter how complex your particular scenario is. Organizations can also easily interleave their own organizational-specific workflows with the out of the box Airship workflows in an entirely configuration driven manner. By also leveraging a more cloud-native workflow solution, the reduced infrastructure requirements for the workflow engine itself means that we will not have to solve for how the infrastructure below the workflow engine can be upgraded by the workflow itself, which is an especially hard problem to deal with.

In Airship 2.0, we have eliminated the need for a long-running API service within the site. Instead, we interface directly with Kubernetes to drive deployments and upgrades. The heart of that mechanism is the airshipctl utility, which will provide a one-stop command line interface to automate cloud provisioning. Because this utility works directly against Kubernetes endpoints, it can ensure even the lowest level dependencies for Airship, such as Helm and Argo and their related CRDs, are instantiated in the site prior to delivering workflows.

The airshipctl utility is a GO module that produces a single binary: airshipctl. This utility operates on a Kubernetes cluster security context. The airshipctl utility is the main entry point for bootstrapping a cluster, collecting and pushing documents, and managing workflows.

The picture below depicts how a traditional Shipyard request is performed in Airship 2.0:

airship 2 shipyard flow

With this new architecture, we are effectively introducing a more cloud-native workflow engine that helps achieve several of our goals. By integrating community projects like Argo, we are able to treat workflows as Kubernetes objects and have eliminated the need for long-running Airship-specific APIs and infrastructure services. The strength of the Argo and declarative workflows is that they allow us to introduce ephemeral infrastructure requirements in support of running a given workflow.

In the next blog post, we will dive into the evolution of Drydock and how we are leveraging community projects such as metal3-io and the cluster-api to help drive cloud-native baremetal provisioning within Airship 2.0.
